Mill Department

Intricate CNC Milling of Complex Parts

Our multi-axis machining centers are capable of making almost any conceivable part. Both vertical and horizontal machining centers offer customers economic production of components in production lots or small quantities. Our skilled operators have extensive experience with materials from traditional metals to plastics and exotic alloys. We deliver the tolerances, surface finishes and complex geometries to meet or exceed your most advanced design components. REQUEST A QUOTE

Multi-Axis CNC Milling Facilities

1 Makino A51NX with 12 Pallet MMC system
1 Kitamura Mycenter-HX500i 4-Axis Horizontal Machining Center with Renishaw Probe, (2) 20" Pallets
1 Kitamura Mycenter-HX630i 4-Axis Horizontal Machining Center (2) 25" Pallets (more)
1 Kitamura Mycenter-HX400i 4-Axis Horizontal Machining Center with Renishaw Probe, (2) 16" Pallets
1 Okuma MX-45VBE Vertical Mill with Renishaw Probe (18x24 table)
2 Doosan DNM500 Vertical Mill with Renishaw Probe (20x40 table)

ADDITIONAL MANUAL MILLS
5 Bridgeport Vertical Mill "J" Head
2 3-Spindle 17 Inch Delta Table Drill Press
15 Single Spindle Drill Press

CNC Milling, Bromiley Machine Company
CNC Milling, Bromiley Machine Company
CNC Milling, Bromiley Machine Company
CNC Milling, Bromiley Machine Company

"If you can imagine it, we can probably manufacture it. Our multi-axis machining centers are capable of making almost any conceivable part."

CNC Machine Shop

Kitamura Machining Center

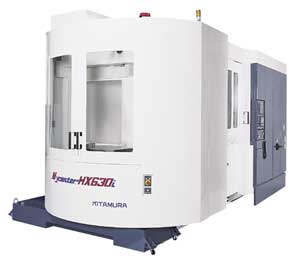

Kitamura HX630 Horizontal Machining Center

Table Size: 24.8" x 24.8" (630 x 630mm)
Travel (X,Y,Z): 39.4" x 31.5" x 32.3" (1,000 x 800 x 820mm)
Spindle Taper: NST No. 50
Spindle Speed: 35 ˜ 12,000rpm
Tool Storage Capacity: 50 pcs. (100, 150, 200 opt.)
Tool Change Time (T-T/CC): 1.5 sec / 5.5 sec
Rapid Feed (X,Y,Z x B): 1,969ipm (50m/min) x 8,000deg/min
Power Requirement: 55KVA

Kitamura Machining Center
